HPP HIGH PRESSURE PUMPS

CLW

CLW | Triplex High Pressure Pumps Hpp
FLUID END: Nickel-Plated Brass
POWER RATING up to 19 kW
OPERATING PRESSURE up to 200 Bar
FLOW RATE up to 100 l/min

CL

Cl Hpp Pumps
FLUID END: Stainless Steel
POWER RATING up to 19 kW
OPERATING PRESSURE up to 200 Bar
FLOW RATE up to 70 l/min

ET

Cl Hpp Pumps
FLUID END Nickel Plated Brass
POWER RATING up to 31 kW
OPERATING PRESSURE up to 250 Bar
FLOW RATE up to 148 l/min

EL – ELR

El Elr High pressure pumps hpp
FLUID END Cast Iron
POWER RATING up to 31,6 kW
OPERATING PRESSURE up to 190 Bar
FLOW RATE up to 164 l/min

ELS

Series EV - EVR
FLUID END Cast Iron
POWER RATING up to 41 kW
OPERATING PRESSURE up to 210 Bar
FLOW RATE up to 164 l/min

EF – EFR

ef efr hpp pumps
FLUID END Stainless Steel
POWER RATING up to 46 kW
OPERATING PRESSURE up to 250 Bar
FLOW RATE up to 183 l/min

ES – ESR

es esr hpp pumps
FLUID END Stainless Steel
POWER RATING up to 60 kW
OPERATING PRESSURE up to 250 Bar
FLOW RATE up to 220 l/min

GL – GLR

gl glr hpp pumps
FLUID END Cast Iron
POWER RATING up to 62,5 kW
OPERATING PRESSURE up to 290 Bar
FLOW RATE up to 256 l/min

SL – SLR

sl slr hpp pumps
FLUID END Cast Iron
POWER RATING 81 kW
OPERATING PRESSURE up to 300 Bar
FLOW RATE up to 316 l/min

MLR

mlr hpp pumps
FLUID END Cast Iron
POWER RATING 118 kW
OPERATING PRESSURE up to 250 Bar
FLOW RATE up to 420 l/min

RLR

rlr hpp pumps
FLUID END Cast Iron
POWER RATING 140 kW
OPERATING PRESSURE up to 250 Bar
FLOW RATE up to 480 l/min

CH

ch hpp pumps
FLUID END Stainless Steel
POWER RATING up to 24 kW
OPERATING PRESSURE up to 500 Bar
FLOW RATE up to 31 l/min

ETH

ch hpp pumps
FLUID END Nickel Plated Brass
POWER RATING up to 29 kW
OPERATING PRESSURE up to 500 Bar
FLOW RATE up to 45 l/min

ELH – ELHR

elh elhr hpp pumps
FLUID END Stainless Steel
POWER RATING 36 kW
OPERATING PRESSURE up to 600 Bar
FLOW RATE up to 70 l/min

EFH – EFHR

efh hpp pumps
FLUID END Stainless Steel
POWER RATING up to 44,9 kW
OPERATING PRESSURE up to 600 Bar
FLOW RATE up to 68,4 l/min

ESH – ESHR

esh eshr hpp pumps
FLUID END Stainless Steel
POWER RATING up to 53,8 kW
OPERATING PRESSURE up to 600 Bar
FLOW RATE up to 83,1 l/min

EFV – EFVR

efv hpp pumps
FLUID END Stainless Steel
POWER RATING up to 47 kW
OPERATING PRESSURE up to 1500 Bar
FLOW RATE up to 24 l/min

ESV – ESVR

esv esvr hpp pumps
FLUID END Stainless Steel
POWER RATING up to 60,3 kW
OPERATING PRESSURE up to 1500 Bar
FLOW RATE up to 29 l/min

ETV

etv hpp pumps
FLUID END Stainless Steel
POWER RATING up to 28 kW
OPERATING PRESSURE up to 1100 bar
FLOW RATE up to 18 l/min

SV – SVR

etv hpp pumps
FLUID END Stainless Steel
POWER RATING up to 81 kW
OPERATING PRESSURE up to 1200 bar
FLOW RATE up to 72 l/min

H

FLUID END Stainless Steel
POWER RATING up to 410 kW
OPERATING PRESSUREup to 2800 Bar
FLOW RATE up to 340 l/min

HIGH PRESSURE PUMPS FOR AN ENTIRE WORLD OF POSSIBLE APPLICATIONS

Pumps for municipalities application
MUNICIPALITIES
Pumps for petrochemical application
PETROCHEMICAL
Pumps for construction application
CONSTRUCTION
Pumps for marine application
MARINE
Pumps for automitive application
AUTOMOTIVE
Pumps for cement plants application
CEMENT PLANTS
Pumps for aviation application
AVIATION
Pumps for oil field application
OILFIELD
Pumps for foundries application
FOUNDRIES
Pumps for military application
MILITARY
Pumps for chemical processing application
CHEMICAL PROCESSING
Pumps for power station application
POWER STATION
Pumps for alluminum and steel mills application
ALLUMINIUM AND STEEL MILLS
Pumps for breweries and distilleries application
BREWERIES AND DISTILLERIES
Pumps for food and beverages processing application
FOOD AND BEVERAGES PROCESSING
Pumps for hydrodemolition application
HYDRODEMOLITION
Pumps for mining application
MINING
Pumps for pharmaceutical application
PHARMACEUTICAL
Pumps for pipes - industrial application
PIPES (INDUSTRIAL)
Pumps for pressure testing application
PRESSURE TESTING
Pumps for pulp & paper application
PULP & PAPER
Pumps for railways application
RAILWAYS
Pumps for rubber processing application
RUBBER PROCESSING
Pumps for traffic and trasports application
TRAFFIC AND TRASPORTS

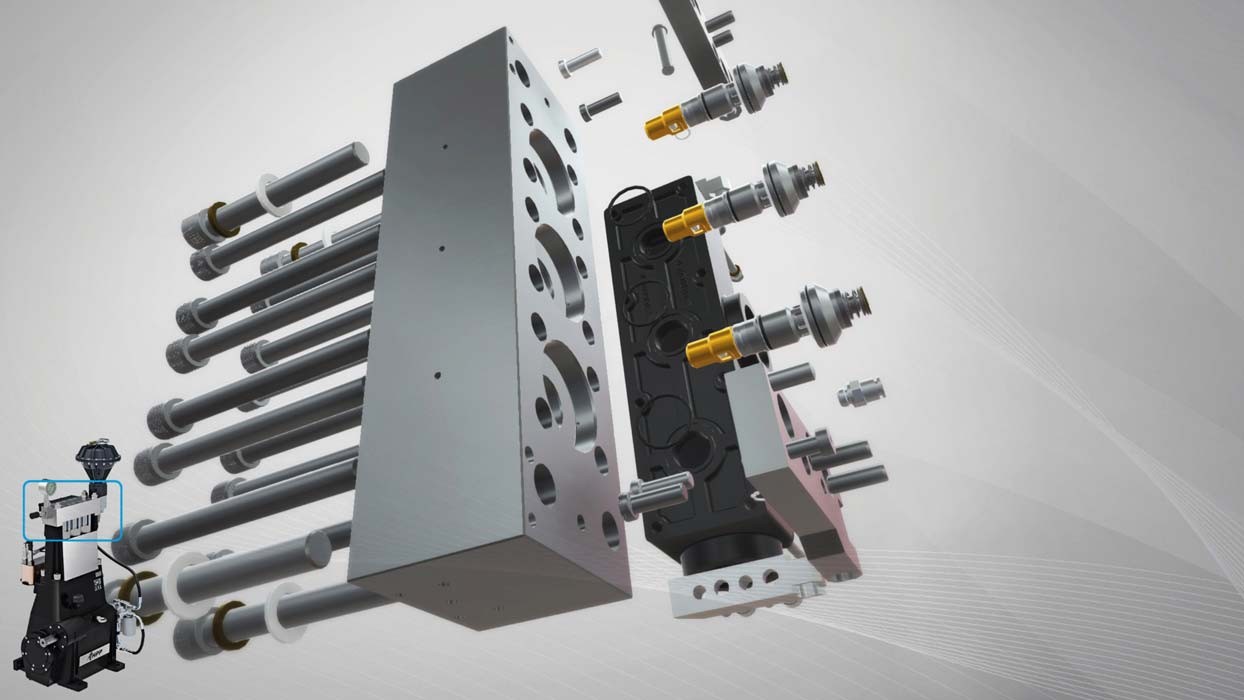

HPP SAP & UAP IV HEADS with INTELLIVALVE TECHNOLOGY

H Series | Triplex High Pressure Pumps Hpp

HIGH PRESSURE PUMPS H SERIES

  • New IV generation heads for SAP & UAP pumps

  • System equipped with single-block valve mechanism

  • Fewer components (-88%) than previous generation

  • Less time (-83%) for maintenance operations

  • Increased components lifetime

  • Possibility to upgrade also for previous generation heads

ACCESSORIES FOR HIGH PRESSURE PUMPS
