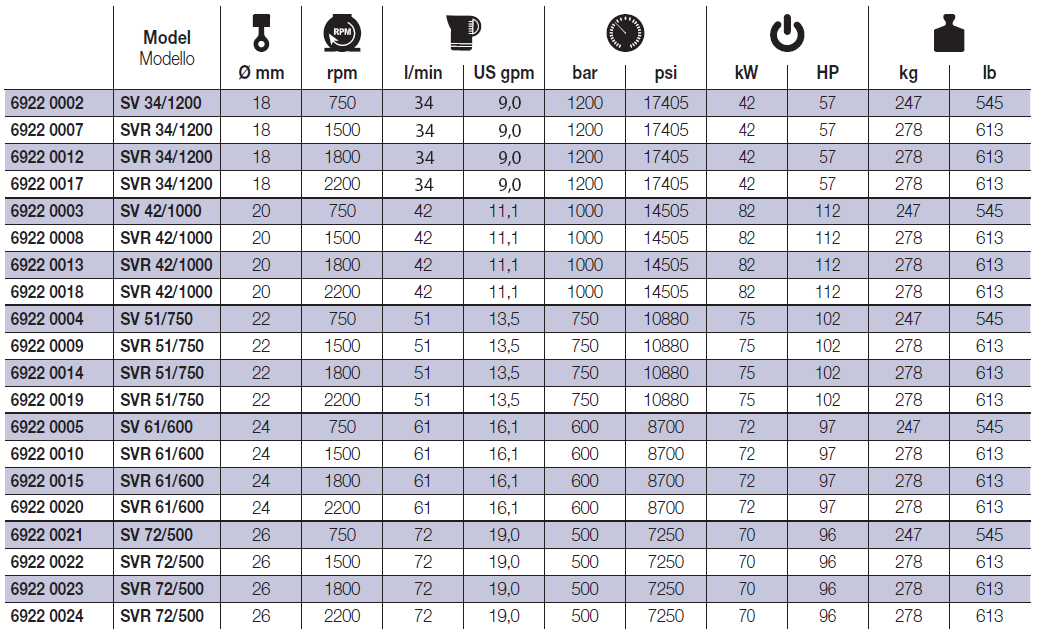

SV | SVR

  • Triplex plunger pump in line
  • Symmetric crankcase featuring top and bottom fixing for easy right to left shaft conversion
  • Shaft support tapered roller bearings oversized for long
    duration
  • Stainless steel suction/delivery valves
  • Seals: high reliability hight pressure seal with low-pressure lubrication and recirculation chamber
  • Pump body: spheroidal cast iron
  • Head: stainless steel
  • Camshaft: forged steel
  • Splash lubrication
  • Connecting rods: cast iron with thin-shell bearings
  • Guiding piston: stainless steel
  • Tungsten carbide plungers
  • Steel valve cage

Accessories

Applications and Uses

SV | SVR
